Microwave Electric Muffle Furnace High Heating Efficiency Dryer Machine

Hunan Huae Microwave Technology Co., Ltd.
Contact Now

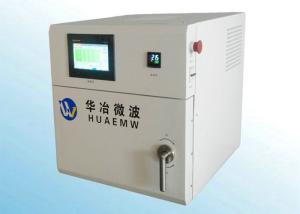

Microwave Electric Muffle Furnace High Heating Efficiency Dryer Machine

Brand Name : Huaemw

Model Number : HY-MF3016E

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Heating Source : Microwave & Electric

Working Temperature : 1550℃

Temperature Measurement Method : infrared thermometer

Voltage : 380V±10V

Warranty : 1 year

Microwave Heating Element : SiC

Contact Now

Microwave and Electric Muffle Furnace HY-MF3016E With High Heating Efficiency

  • Description

HY-MF1516E is high temperature muffle furnace using multiple heating source ie. microwave and electric with microwave rated power of 3KW and eletric heating power of 5KW and a heating space of 140×140×100mm.

  • Applications

The HY-MF3016E muffle furnace is ideal choice for microwave synthesis, ashing, thermal treatment, roasting, calcination, sintering as well as other chemical process under air atmosphere conditions.

  • Technical Parameters
Parameters HY-MF3016E
Power Voltage 380V±10V 50Hz
Rated Power 8KW
Electrical Heating Power 5KW
Microwave
System
Microwave
Output Power
0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal
Insulation System
Tmax 1600°C
Working Temperature 0~1550°C
Heating Space(L×W×H) 140×140×100mm
Temperature Control
System
Temperature
Measurement Method
infrared thermometer
Temperature
Measurement Range
300°C~1800°C
Temperature
Control Precision
±0.1%
Control
System
Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen
40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Safety
System
Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension
Furnace Body(L×W×H) ca. 950×750×950mm
Floor Area <1m2
